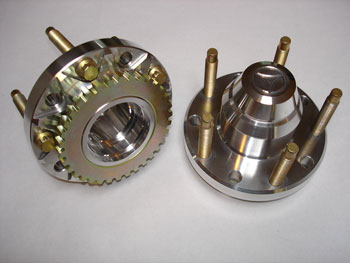

You asked for it and here it is… the KORE3 billet hub kit for GM B/D-body tall-spindle applications. This hub kit picks up where our standard billet hub kits left off and have been optimized specifically for the Impala SS and other compatible models. KORE3 hubs are a clean, strong, lightweight solution for anybody wanting to run slip-on rotors on their GM B/D-body with the option to maintain ABS functionality and are designed to complement KORE3 big-brake kits.

KORE3 HD Hub Solid Model
Notes: Requires the use of modified C5/C6 rotors to properly mate with the 5 x 5" wheel pattern and Ø3.06" [77.8mm] pilot register. Click LH or RH for respective rotors. KORE3 HD billet hubs decrease track width .03" [.8 mm] per side over stock applications when used with C5/C6 components, making the overall track width .06" [1.6 mm] narrower than stock. Compatible with GM tall-spindles that used Ø1.250" (SET6) inner and Ø.844" (SET3/SET34) outer wheel bearings. KORE3 HD hubs are not compatible with tall-spindles that use the smaller SET2 (.75") outer wheel bearings.
The following items are included in this kit: Installation instructions (2) KORE3 HD Billet Hubs CNC machined 6061-T6511 billet aluminum Dual 5 x 5" wheel patterns Black anodized finish 3.36 lb [1.52 kg] each (1) Hardware kit (10) M12x1.5 Dorman Wheel Studs (2) SET6 Inner Wheel Bearings (2) SET3 Outer Wheel Bearings (2) Inner Oil Seals (2) Stamped Steel Grease Caps (10) 1/2-20" ARP wheel Studs (Optional)
***Note: ABS tone ring option includes a $25 fully refundable core charge and are limited to current availability. In order to qualify for core charge refund, undamaged cores must be delivered (freight paid) to KORE3 Industries, 1608 Elk Cir SW, Albany, OR 97321 within 60 days from placing order. Please send tone rings only, not complete rotors.
