KORE3 Technical Info...

If it's technical...this is where to find it. Click the shortcut links in the table of contents below to jump directly to the section or scroll down. For answers to some of the most commonly asked questions regarding KORE3 products, please visit the FAQ page.

  • KORE3 Big-Brake Conversions - Click
    • KORE3 Big-Brake Application Chart - Click
    • Disc Brake Wheel Fitment Templates - Click



KORE3 Big-Brake Conversions:

KORE3 big-brake kits are one of the most cost effective ways to put high performance, oversize disc brakes on your classic muscle car. Our kits have been designed to adapt massive 5th and/or 6th generation (C5/C6) Corvette components to the applications listed below, for maximum value and flexibility since each and every car is a custom application. KORE3 offers several levels of front big-brake kits from ø325mm [ø12.8"] to ø355mm [ø14.0"] and rears from ø305mm [ø12.0"] to ø340mm [ø13.4"]. Wheel size, vehicle purpose, and budget all factor in to what the best kit for your application may be. Contact us today if you would like to discuss your application.

KORE3 currently offers numerous big-brake kits for an ever expanding number of applications. All kits can be purchased either as individual components or in complete kit form in order to best serve our customers. Please refer to the KORE3 Big-Brake Application Chart below for relevant information and compatibility notes. If your application is not listed yet, please contact us as we are continually developing new kits.

Big brakes inherently necessitate big wheels...ø17 inches or larger in this case. Please note that not all ø17" and larger wheels will clear the calipers, particularly between the face of the caliper and the spokes of the wheel. Download the appropriate KORE3 Wheel Fitment Templates for your application and kit selection and verify wheel clearance/interference prior to ordering.

KORE3 Big-Brake Application Chart
Year Make Model
Spindle
Notes
1964-1972
Buick Grand Sport, Skylark, Special, Sport Wagon
Short
1,3
1973-1974
Buick Apollo
Short
1,3
1973-1977
Buick Century
Tall
5,6
1975
Buick Apollo
Tall
5,6
1975-1979
Buick Skylark
Tall
5,6
1977-1978
Buick Riviera
Tall
5,6
1977-1994
Buick Electra & Le Sabre Wagons (full size)
Tall
5,6
1982-1988
Buick Century, Grand National, Regal
Short
2,3
1976
Cadillac Seville
Tall
5,6
1977-1984
Cadillac Deville
Tall
5,6
1977-1994
Cadillac Fleetwood
Tall
5,6
1985-1994
Cadillac Brougham
Tall
5,6
1964-1972
Chevy Chevelle, El Camino, Malibu, Monte Carlo
Short
1,3
1967-1969
Chevy Camaro
Short
4
1968-1974
Chevy Nova
Short
1,3
1970-1981
Chevy Camaro
Tall
5,6
1973-1977
Chevy Chevelle, Monte Carlo
Tall
5,6
1975-1979
Chevy Nova
Tall
5,6
1977-1996
Chevy Belair, Biscayne, Caprice, Impala (full size)
Tall
5,6
1978-1988
Chevy Chevelle, El Camino, Monte Carlo
Short
2,3
1982-1992
Chevy Camaro (w/o 1LE Performance Package)
F3
6
1993-2002
Chevy Camaro
F4
6
1973-1977
GMC Sprint
Tall
5,6
1964-1972
Oldsmobile 442, F-85, Cutlass
Short
1,3
1973-1974
Oldsmobile Omega
Short
1,3
1973-1977
Oldsmobile 442, Cutlass
Tall
5,6
1975-1979
Oldsmobile Omega
Tall
5,6
1977-1992
Oldsmobile 98, Delta 88 (full size)
Tall
5,6
1978-1988
Oldsmobile 442, Cutlass
Short
2,3
1964-1972
Pontiac GTO, Lemans, T-37
Short
1,3
1967-1969
Pontiac Firebird
Short
4
1969-1972
Pontiac Grand Prix
Short
1,3
1970-1981
Pontiac Firebird
Tall
5,6
1971-1974
Pontiac Ventura
Short
1,3
1973-1977
Pontiac Grand Prix, Lemans
Tall
5,6
1975-1977
Pontiac Ventura
Tall
5,6
1977-1979
Pontiac Phoenix
Tall
5,6
1977-1986
Pontiac Bonneville, Catalina, Grandville (full size)
Tall
5,6
1978-1988
Pontiac Grand Prix, GTO, Lemans, Tempest
Short
2,3
1982-1992
Pontiac Firebird (w/o 1LE Performance Package)
F3
6
1993-2002
Pontiac Firebird
F4
6

Notes:

  1. GM short-spindle (forged): Use KORE3 short-spindle big-brake kit. Three (3) hardware choices depending on version of short-spindle.
  2. GM short-spindle (cast) with integral caliper mount. KORE3 does not currently offer a kit for this application.
  3. Spindle swap candidate.
  4. 1967-1969 F-body: Use KORE3 short-spindle big-brake kit.

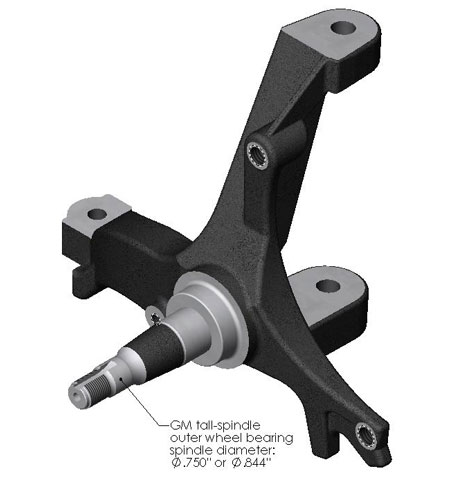

  5. GM tall-spindle: Outer wheel bearing spindle shaft diameter (click for image) must be specified when purchasing KORE3 billet hubs: Ø.750" or Ø.844" ID bearings were both used on different variations of the GM tall-spindle.
  6. Minor irreversible spindle modifications required.

Return to top

KORE3 C5/C6 Ø325mm Front Fitment Template:

Template gives an outline of the front C5/C6 brake kit (Ø325mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C5/C6 Ø325mm Front Fitment Template

KORE3 C5/C6 Ø305mm Rear Fitment Template:

Template gives an outline of the rear C5/C6 brake kit (Ø305mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C5/C6 Ø305mm Rear Fitment Template

KORE3 C6 Z51 Ø340mm Front Fitment Template:

Template gives an outline of the front C6 Z51 brake kit (Ø340mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C6 Z51 Ø340mm Front Fitment Template

KORE3 Hybrid C5/C6 Ø355mm Front Fitment Template:

Template gives an outline of the front C5/C6 KORE3 Hybrid brake kit (Ø355mm w/2-piston PBR floating calipers) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C5/C6 KORE3 Hybrid Ø355mm Front Fitment Template

KORE3 C6 Z51 Ø330mm Rear Fitment Template:

Template gives an outline of the rear C6 Z51 brake kit (Ø330mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C6 Z51 Ø330mm Rear Fitment Template

KORE3 C6 Z06 Ø355mm Front Fitment Template:

Template gives an outline of the front C6 Z06 brake kit (Ø355mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C6 Z06 Ø355mm Front Fitment Template

KORE3 C6 Z06 Ø340mm Rear Fitment Template:

Template gives an outline of the rear C6 Z06 brake kit (Ø340mm) which allows wheel fitment to be verified prior to ordering. Instructions are printed on the template.
C6 Z06 Ø340mm Rear Fitment Template
Return to top
