KORE3 BILLET HUB KIT: GMPU, C10 (LD), 5x5
KORE3 BILLET HUB KIT: GMPU, C10 (LD), 5x5

You asked for it and here it is, the KORE3 billet hub kit for GMPU C10/G10 spindle applications with 5x5x3.06 wheel patterns and SET6 (1.25") inner wheel bearings. These hubs are the same as used with the 1991-1996 B-body applications, and are a clean, strong, lightweight solution for anybody wanting to run slip-on rotors on their GMPU application with the SET6 inner wheel bearing and 1" thick factory brake rotor. These hubs are designed to complement KORE3 C5/C6 Corvette based big-brake kits.

KORE3 Hub Assembly KORE3 GMPU Hub Assembly

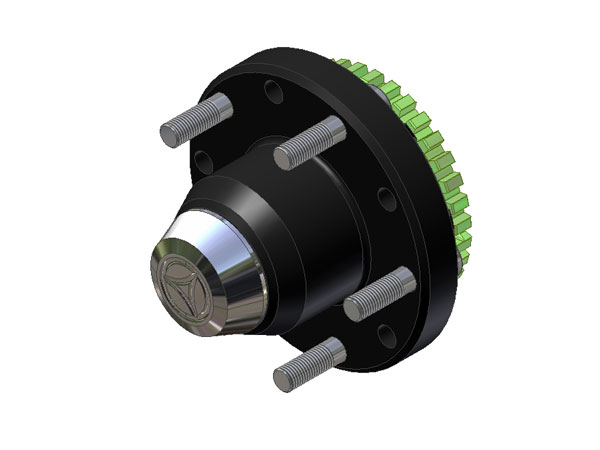

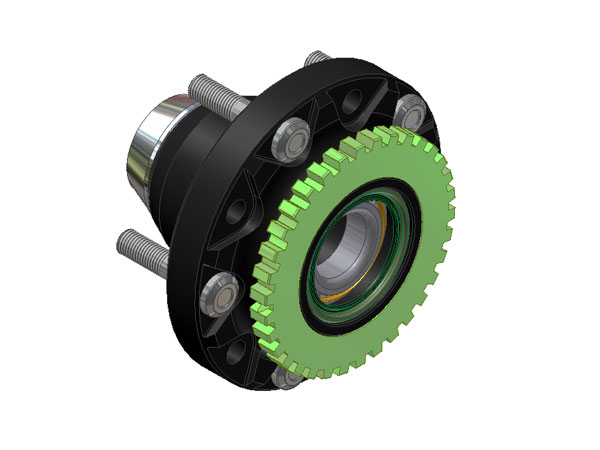

KORE3 HD Hub Solid Model

Notes:
  1. Requires the use of modified C5/C6 rotors to properly mate with the 5 x 5" wheel pattern and Ø3.06" [77.8mm] pilot register. Click LH or RH for respective rotors.


  2. KORE3 billet hubs decrease track width .03" [.8 mm] per side over stock applications when used with C5/C6 components, making the overall track width .06" [1.6 mm] narrower than stock.


  3. Compatible with 1971-1987 GMPU spindles that used Ø1.250" (SET6) inner and Ø.844" (SET3/SET34) outer wheel bearings. KORE3 hubs are not compatible with HD GMPU spindle applications that used the larger SET5 (1.375") inner wheel bearings and had the thicker 1.25" rotors.


The following items are included in this kit:

  • Installation instructions


  • (2) KORE3 Billet Hubs
    • CNC machined
    • 6061-T6511 billet aluminum
    • Dual 5 x 5" wheel patterns
    • Black anodized finish
    • 3.05 lb [1.38 kg] each

  • (1) Hardware kit
    • (10) M12x1.5 ARP Press-In Wheel Studs
    • (2) SET6 Inner Wheel Bearings
    • (2) SET3 Outer Wheel Bearings
    • (2) Inner Oil Seals
    • (2) Billet Aluminum Grease Caps
    • (10) 1/2-20" ARP Screw-In Wheel Studs (Optional)


:

Price: $409.00
